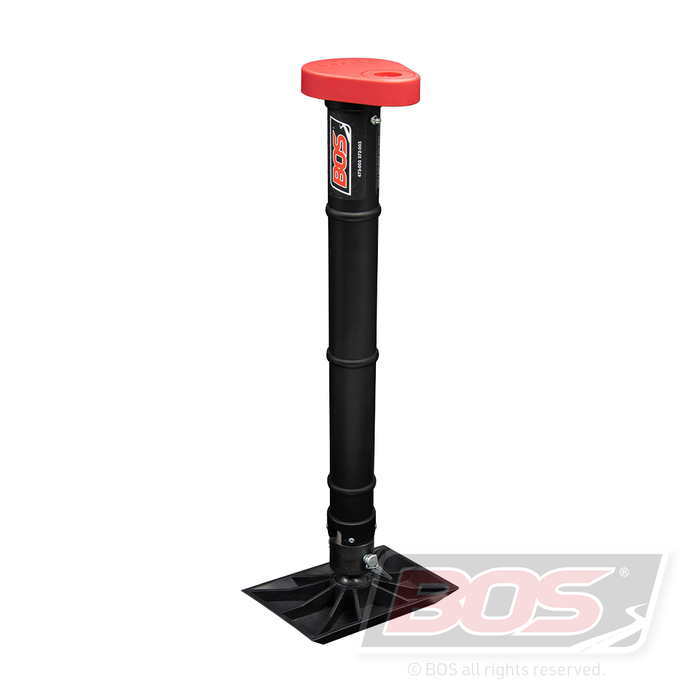

BOS 3 Rib Gearbox Jockey Unit 50mm

BOS 3 Rib Gearbox Jockey Unit 50mm

Part Number 473-003
by Bos Jockey Wheels
$470.00 - $470.00
$470.00
$470.00
$470.00 - $470.00
$470.00
Availability:
In Stock
4 payments of $117.50
4 payments of $117.50
From $10/week

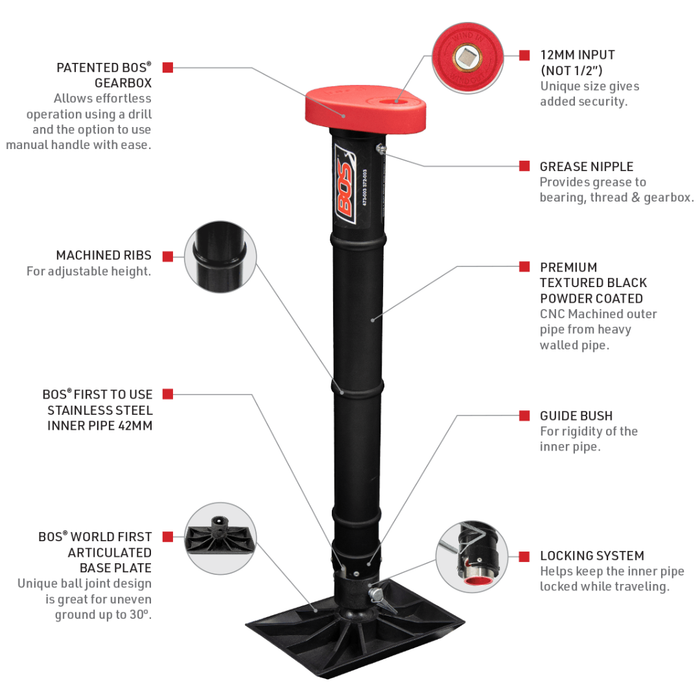

  • PATENTED BOS® GEARBOX Allows effortless operation using a drill and the option to use manual handle with ease
  • MACHINED RIBS For adjustable height
    •
  • BOS® FIRST TO USE STAINLESS STEEL INNER PIPE 42MM
    •
  • BOS® WORLD FIRST ARTICULATED BASE PLATE Unique ball joint design is great for uneven ground up to 30º
    •
  • 12MM INPUT (NOT 1/2") Unique size gives added security
    •
  • GREASE NIPPLE Provides grease to bearing, thread & gearbox
    •
  • PREMIUM TEXTURED BLACK POWDER COATED CNC Machined outer pipe from heavy walled pipe
    •
  • GUIDE BUSH For rigidity of the inner pipe
    •
  • LOCKING SYSTEM Helps keep the inner pipe locked while traveling

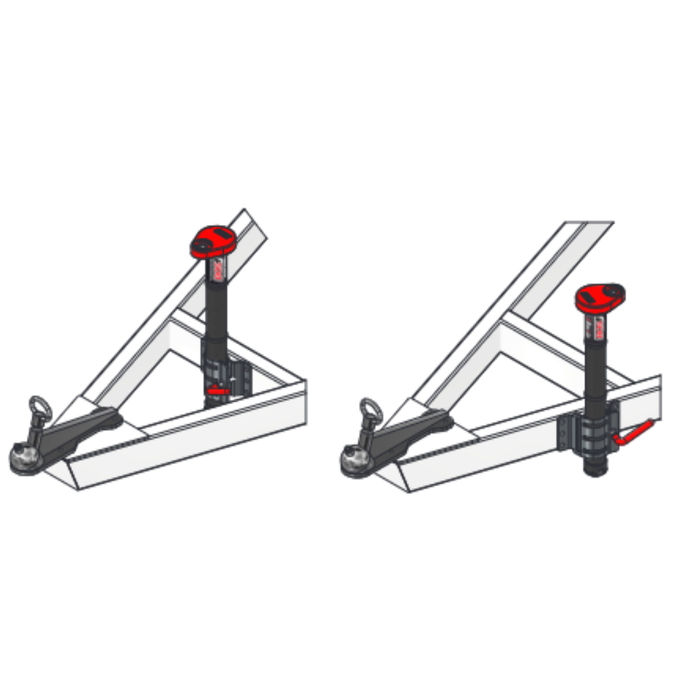

  • Fits into your existing 50mm clamp
  • Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup
  • LMATS Tested up to 1800kg in a rigid clamp setup

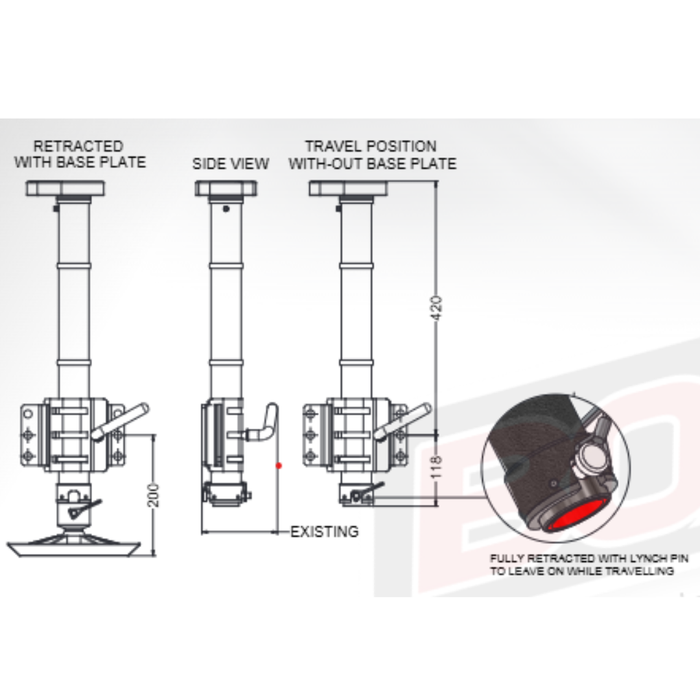

  • 400mm Extended travel
  • Unit can be left on while traveling, locking it in with medium clutch setting and the BOS® traveling strap
  • The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel
  • 120mm Pipe extension when extra height is needed
  • Maximum extension with base plate 990mm
  • Mazimum extension with 120mm expension & base plate 1108mm

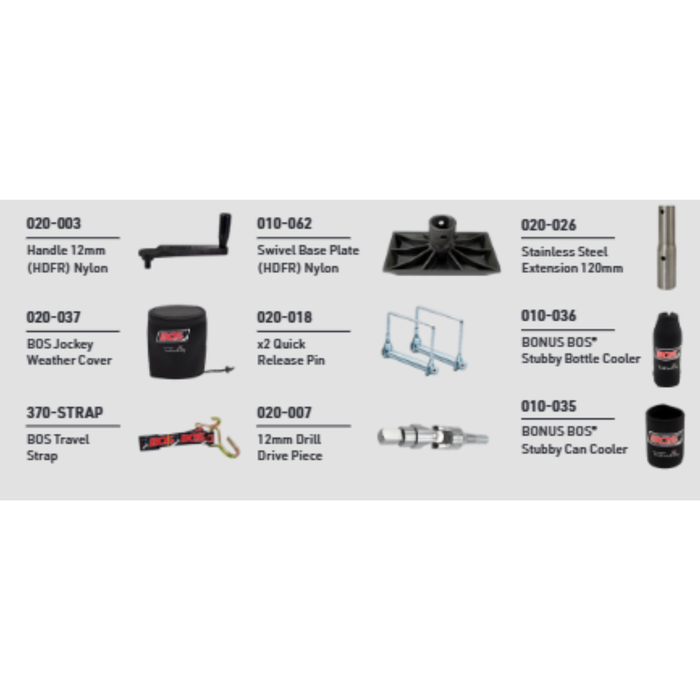

    • Kit Includes:

    • Articulated base plate (010-062)
    • Manual handle (020-003)
    • 12mm drill drive piece (020-007)
    • 2 x quick release pins (020-018)
    • Travel strap (370-strap)
    • Jockey weather cover (020-037)
    • Bonus stubby can cooler (010-035)
    • Bonus stubby bottle cooler (010-036)
    • Stainless steel extension 120mm (020-026)

    Purchase the 8" double offset wheel separately (200-060)

    We aim to have your parcel delivered as soon as possible. Sometimes, unavoidable delays can occur. If you have not received your order in the time frame provided, please get in touch with us at online@carac.com.au.

    You can check the status of your order anytime by signing into My Account.

    Standard Size Shipping

    • $11 Flat Rate - all states except WA (2-5 business days)
    • $17 Express Rate - all states except WA (1-3 business days)
    • $16 Flat Rate - shipping to WA (3-8 business days)
    • $22 Express Rate - shipping to WA (2-5 business days)

    Oversized Shipping

    Some items are heavy and bulky, and for those oversized items with known shipping charges, we will display these rates in the checkout.

    Other oversized items don't have a fixed shipping rate, so we'll provide you with a quote on the best rates and method to your location after we check with our range of specialist shipping partners.

    Please read our Shipping Policy page for further details.

    Returns

    In order to make a return the following points must be met.

    • Proof of purchase must be provided.
    • Item/s must be in original and unused condition.
    • All packaging must still be in original condition.
    • Refunds will be issued to the original method of payment and may take several working days to show in your account.
    • We will notify you when the refund has been made so that you can track funds.
    • Any postage charges incurred in the original transaction will not be refunded, unless we have incorrectly supplied an item.

    Online purchases

    If you are not happy with your online purchase, you can return it within 30 days of the original order date. To be eligible for return, the terms as outlined above must be met.

    To organise a online or in store return, please follow the steps on our Refunds & Returns page.

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)

    Oversized item. Choose Ship at checkout and we'll provide a shipping price where available or follow up by phone or email with the lowest freight quote for your location. Store pickup is available at no charge.

    Description
    • PATENTED BOS® GEARBOX Allows effortless operation using a drill and the option to use manual handle with ease
  • MACHINED RIBS For adjustable height
    •
  • BOS® FIRST TO USE STAINLESS STEEL INNER PIPE 42MM
    •
  • BOS® WORLD FIRST ARTICULATED BASE PLATE Unique ball joint design is great for uneven ground up to 30º
    •
  • 12MM INPUT (NOT 1/2") Unique size gives added security
    •
  • GREASE NIPPLE Provides grease to bearing, thread & gearbox
    •
  • PREMIUM TEXTURED BLACK POWDER COATED CNC Machined outer pipe from heavy walled pipe
    •
  • GUIDE BUSH For rigidity of the inner pipe
    •
  • LOCKING SYSTEM Helps keep the inner pipe locked while traveling
  • Fits into your existing 50mm clamp
  • Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup
  • LMATS Tested up to 1800kg in a rigid clamp setup
  • 400mm Extended travel
  • Unit can be left on while traveling, locking it in with medium clutch setting and the BOS® traveling strap
  • The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel
  • 120mm Pipe extension when extra height is needed
  • Maximum extension with base plate 990mm
  • Mazimum extension with 120mm expension & base plate 1108mm

    • Kit Includes:

    • Articulated base plate (010-062)
    • Manual handle (020-003)
    • 12mm drill drive piece (020-007)
    • 2 x quick release pins (020-018)
    • Travel strap (370-strap)
    • Jockey weather cover (020-037)
    • Bonus stubby can cooler (010-035)
    • Bonus stubby bottle cooler (010-036)
    • Stainless steel extension 120mm (020-026)

    Purchase the 8" double offset wheel separately (200-060)
