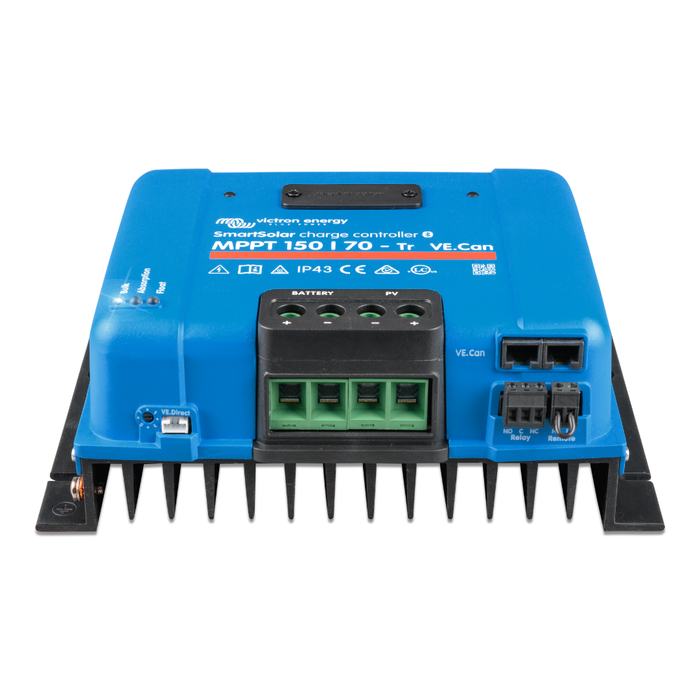

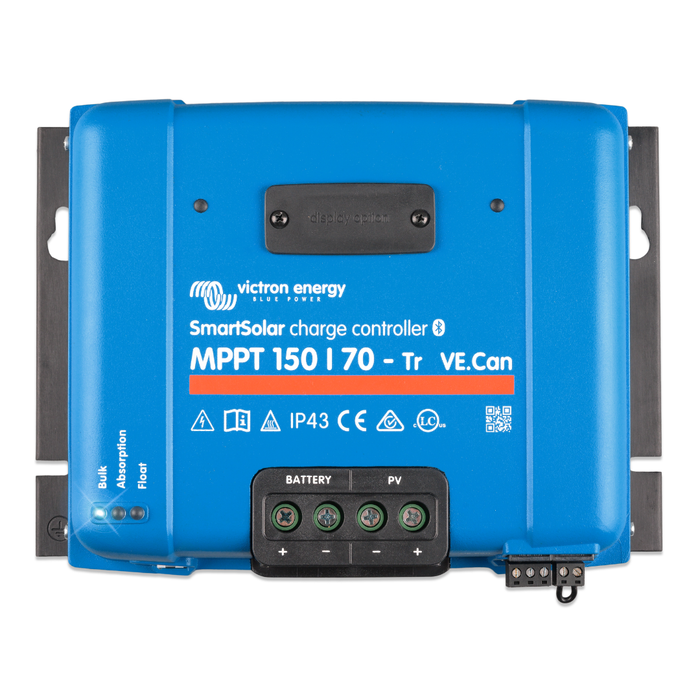

Victron SmartSolar MPPT 150/70-Tr VE.Can - Charge Controller

Victron SmartSolar MPPT 150/70-Tr VE.Can - Charge Controller

Part Number SCC115070411
by Victron Energy
$784.95 - $784.95
$784.95
$784.95
$784.95 - $784.95
$784.95
Availability:
In Stock
4 payments of $196.24
4 payments of $196.24
From $10/week
  • Ultra-fast Maximum Power Point Tracking (MPPT) - Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers
  • Advanced Maximum Power Point Detection in case of partial shading conditions - If partial shading occurs, two or more maximum power points (MPP) may be present on the power voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative SmartSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
  • Outstanding conversion efficiency - No cooling fan. Maximum efficiency exceeds 98%.
  • Flexible charge algorithm - Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch.
  • Extensive electronic protection - Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.
  • Bluetooth Smart built-in - The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
  • Internal temperature sensor and optional external battery voltage, temperature and current sensing via Bluetooth - A Smart Battery Sense, a BMV-712 Smart Battery Monitor or a SmartShunt can be used to communicate battery voltage and temperature (and current, in case of a BMV-712 or a SmartShunt) to one or more SmartSolar Charge Controllers.
  • VE.Direct or VE.Can - For a wired data connection to a Color Control GX, other GX products, PC or other devices
  • Fully discharged battery recovery function - Will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
  • VE.Can: the multiple controller solution - Up to 25 units can be synchronised with VE.Can, and up to 10 units with Bluetooth
  • Remote on-off - To connect for example to a VE.BUS BMS
  • Programmable relay - Can be programmed to trip on an alarm, or other events
  • Optional: SmartSolar pluggable LCD display - Simply remove the rubber seal that protects the plug on the front of the controller, and plug-in the display
