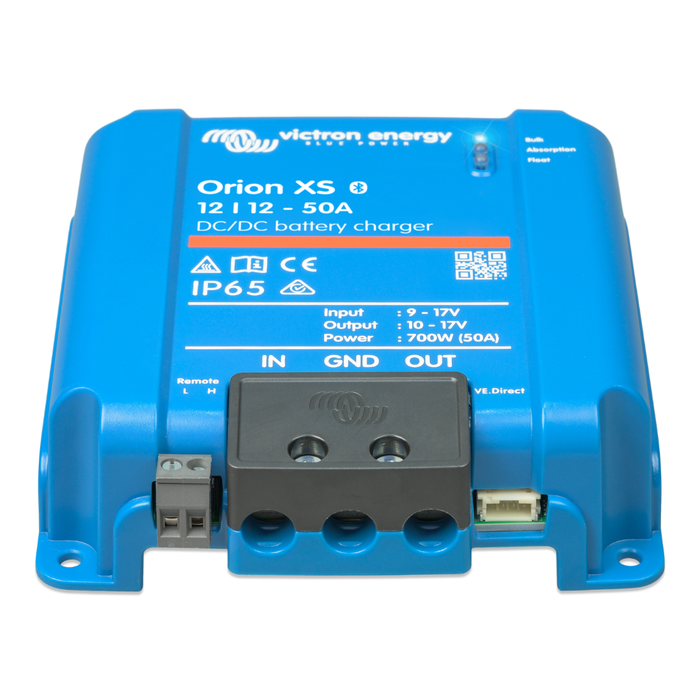

Victron Orion XS 12V/12-50A DC-DC Battery Charger
-
Perfect for charging lare battery banks on the go.
-
Using engine power to charge your service battery, the Orion XS DC-DC charger combines impressive power with an ultra-compact, ultra-durable design.
-
The Orion XS supports any alternator and battery setup with configurable voltage and current, achieving 98.5% efficiency and maintaining full rated output even at 40°C/104°F. It draws a stable load from smart Euro 5/6 alternators, preventing the service battery from being undercharged. The 4-stage charging algorithm adapts to discharge depth, extending battery life across all common chemistries.
-
Input voltage range: 9-17 V
-
Output voltage adjust range: 10-17 V
-
Output voltage tolerance: +/- 0,25 % (max)
-
Output voltage noise: 10 mV rms
-
Input and output current setting range: 1 – 50 A
-
Maximum constant short-circuit current: 50 A
-
Continuous output power up to 40 °C: 700 W
-
Maximum efficiency: 98.5 %
-
No-load current consumption: < 100 mA
-
Standby current consumption: < 1,5 mA
-
Can be used as power supply: Yes, output voltage can be set with VictronConnect App VictronConnect App / Bluetooth Smart: Yes
-
VE.Smart Networking: Yes
-
VE.Direct: Yes (including DVCC)
-
Operating temperature range: -20 to +60 °C (derating 1,5 % per °C above 40 °C)
-
Humidity: 95 %, non-condensing
-
Maximum altitude: 2000 m
-
Pollution degree: PD2
-
Overvoltage category: OVC 1
-
DC connection: Screw terminals
-
Maximum cable cross-section: 4AWG (21,2 mm2)
-
Weight 0.330kg
-
Dimensions: 137.3 x 123.1 x 40 mm
-
Protection category: IP65
