IHider 230V 10,000 BTU Inverter Underbunk Reverse Cycle Air Conditioner - WIFI

IHider 230V 10,000 BTU Inverter Underbunk Reverse Cycle Air Conditioner - WIFI

Part Number IHIDER220
by Cool-J
$1,759.00 - $1,759.00
$1,759.00
$1,759.00
$1,759.00 - $1,759.00
$1,759.00
Availability:
Backorder

Back Order Information

This product is currently on backorder.
Place an order and we'll update you on the wait time and delivery status.

Prefer a heads-up when it's back?
Call us on 03 9794 7977.

Oversized item. Choose Ship at checkout and we'll provide a shipping price where available or follow up by phone or email with the lowest freight quote for your location. Store pickup is available at no charge.

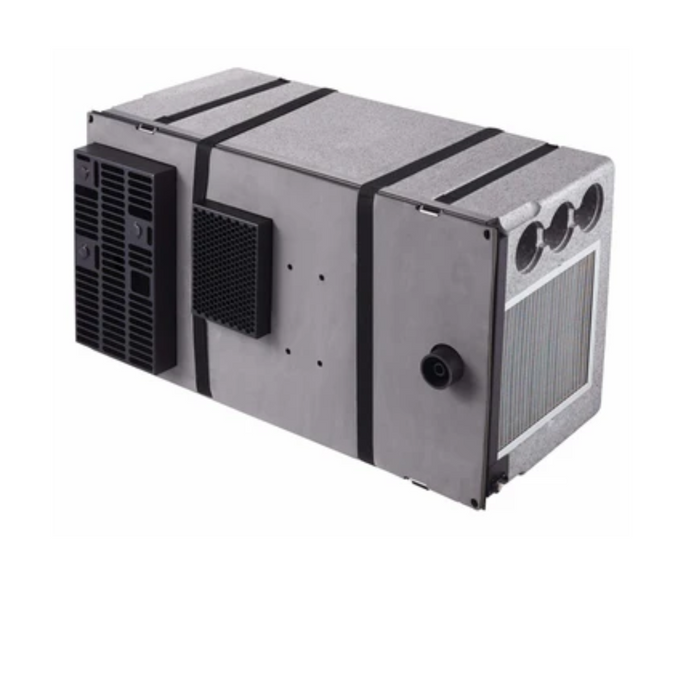

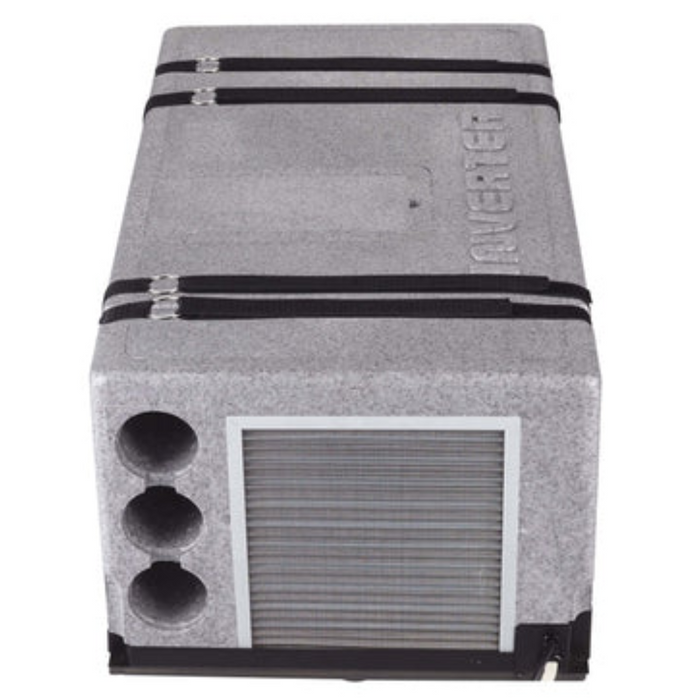

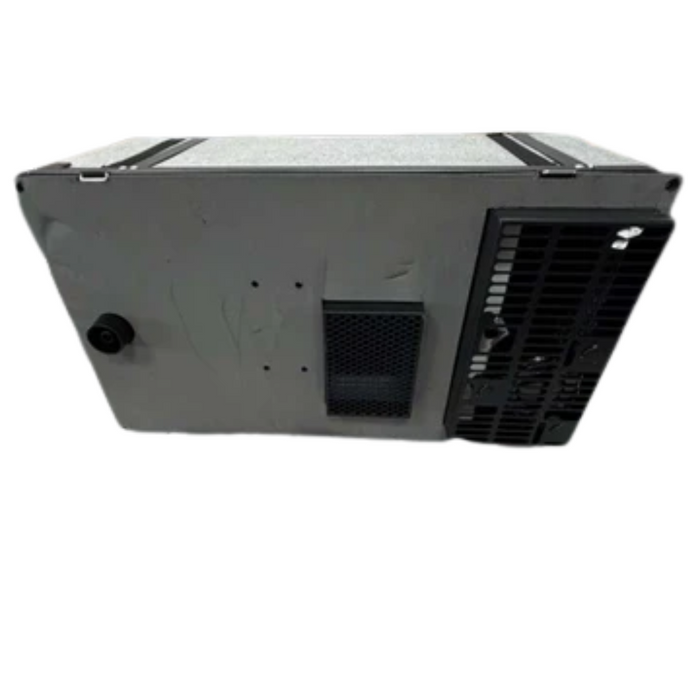

The 230V iHider 10,000 BTU inverter underbunk reverse cycle air conditioner provides reverse cycle heating and cooling for caravans, poptops, RVs, and motorhomes. This model includes built-in WiFi control via smartphone app and energy-efficient inverter technology.

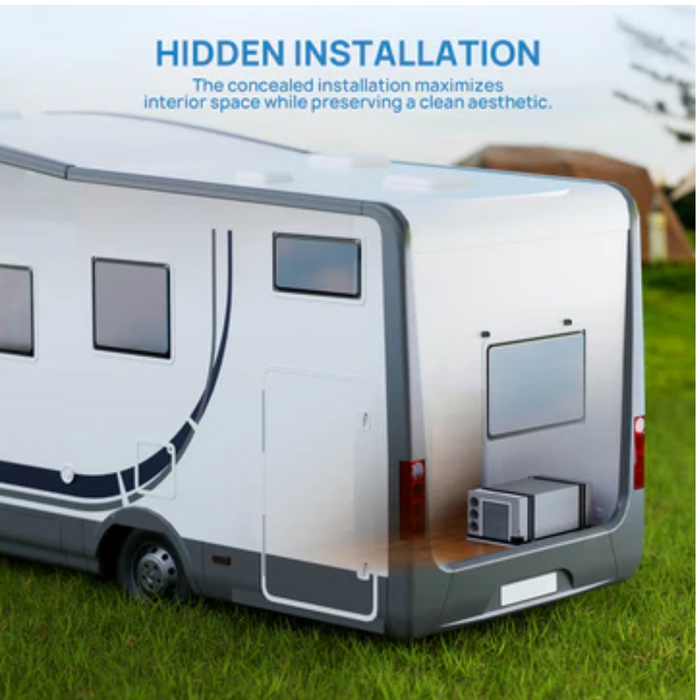

Ideal if you have no roof space. Inverter Technology so you can run on small generator or off battery power.


SPECIFICATIONS

  • Model: iHider220
  • Power supply: 220-240V/50Hz
  • Rated cooling capacity: 10,000 BTU (i.e. 2930W)
  • Rated Heating capacity (HP): 11,500 BTU (i.e. HP 2780W + Heater 600W)
  • Consumption Power (Cooling/Heating): 872~1002W / 1300~1405W
  • Current(Cooling/Heating): 3.8A~4.4A / 3.0+2.6A~3.54A+2.6A
  • EER/COP: 3.0/3.4
  • Compressor Locked Rotor Current: 18.4A
  • Air Flow (Hight Speed): 350 m³/h

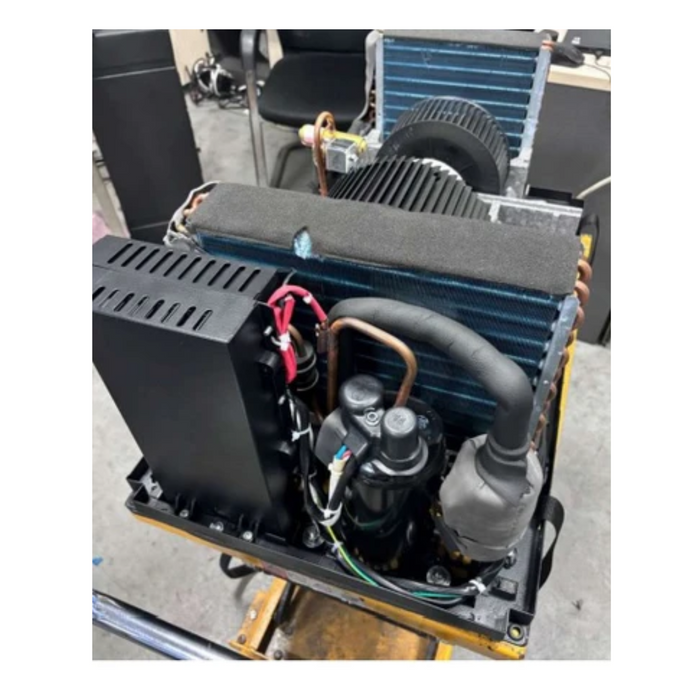

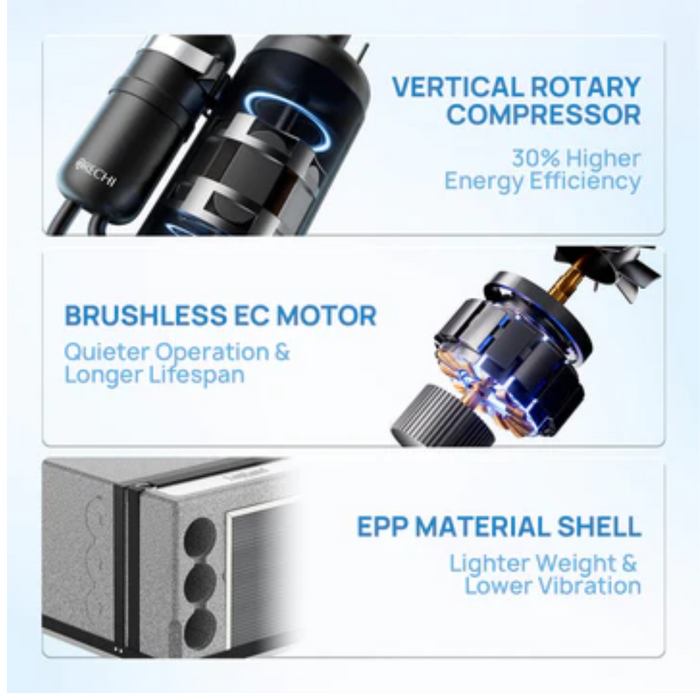

  • Compressor: vertical rotary/Rechi
  • EC motor + 2 fans system
  • Net Dimensions: W405 x H296 x L734 (mm)
  • Net Weight: 26Kg.
  • Gross Weight: 29Kg.

* Does not include ducting.

FEATURES

  • Wifi Control via APP in Smart Phone

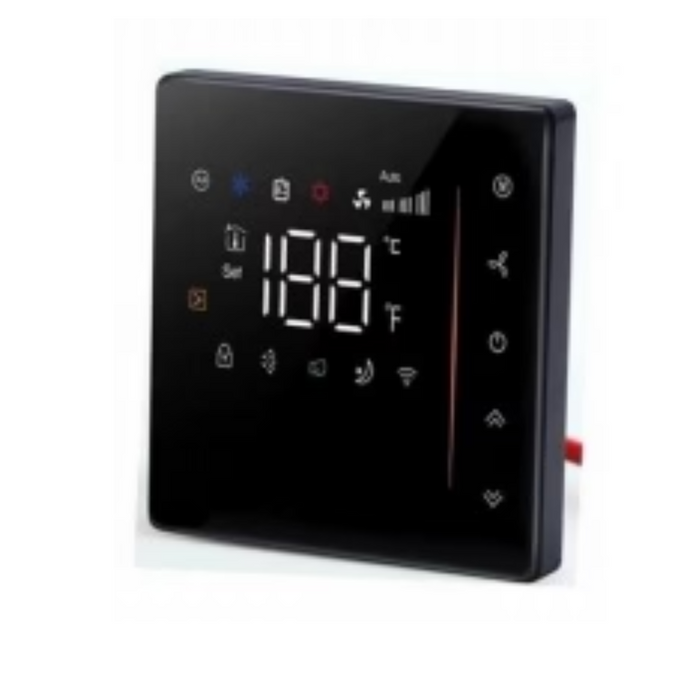

  • Wall-Pad Controller Touch panel
  • Return air filter in stainless steel mesh filter
  • Saving space; low noise and low vibration;

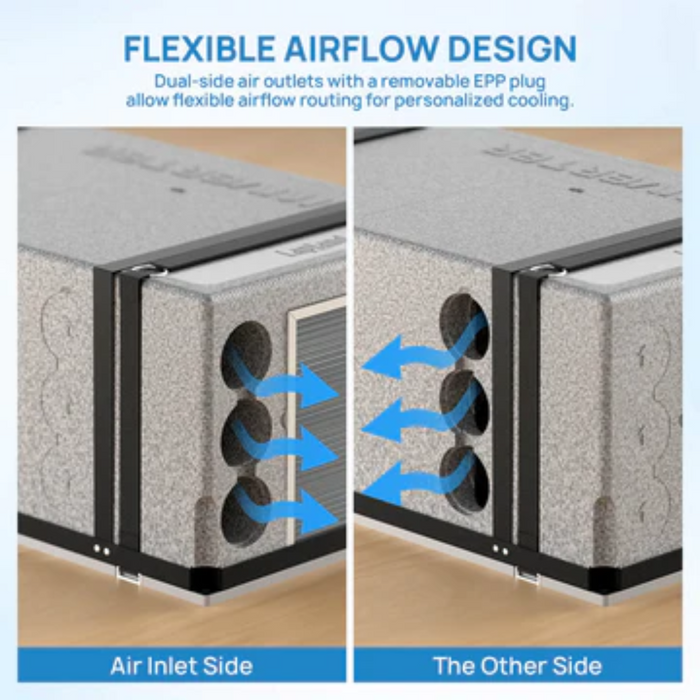

  • Air distributed equable through 3 vents all over the room, more comfortable for users;

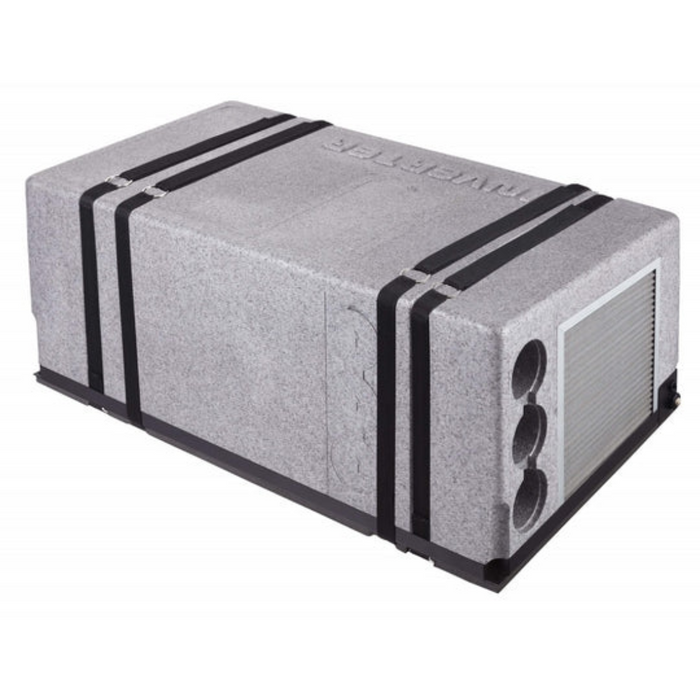

  • One piece EPP frame with better sound/heat/vibration insulation, and so simpler for faster installation and maintenance;
  • Refrigerant R32 410g
  • Supplied ready to install.
  • Supplied with full-function remote control that allows access to all function Caravans.
  • CE,RoHS,UL certificated.
  • Warranty 2 years for compressor and 1 year for other parts; for any non-human defective.

IMPORTANT: This air conditioner requires electrical connection by a licensed electrician and must be connected to Australian standards AS/NZS3000 & AS/NZS3001 By purchasing this product, you acknowledge that failure to have this product installed by the appropriately qualified tradesperson will void the warranty & may pose a potential risk to your health & safety.

  • THESE UNITS ARE FITTED AT CARAC IN OUR FULLY EQUIPPED AND INDUSTRY ACCREDITED WORKSHOP.  PLEASE ENQUIRE IN STORE FOR A COMPLETE FITTED PRICE.
