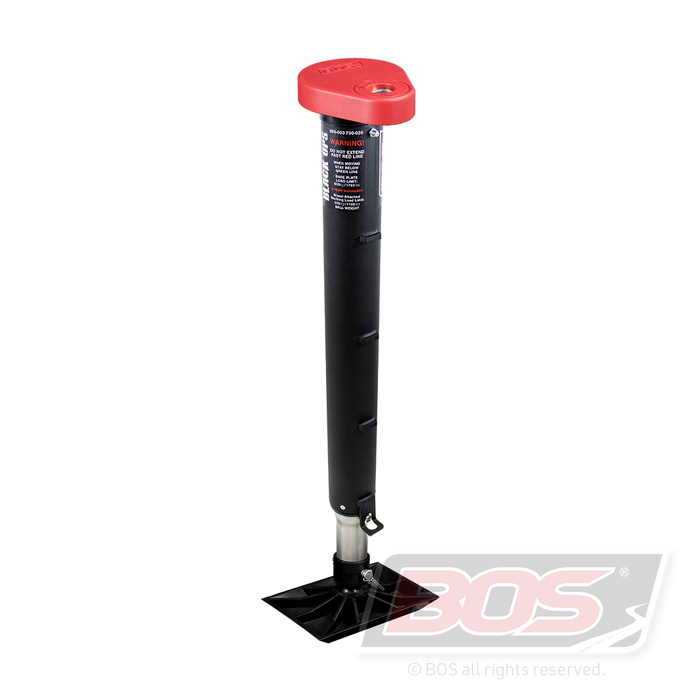

BOS 4 Lug 60mm Black Ops Gearbox & Base Plate Kit

BOS 4 Lug 60mm Black Ops Gearbox & Base Plate Kit

Part Number 700-003
by Bos Jockey Wheels
$525.00 - $525.00
$525.00
$525.00
$525.00 - $525.00
$525.00
Availability:
Backorder

Back Order Information

This product is currently on backorder.
Place an order and we'll update you on the wait time and delivery status.

Prefer a heads-up when it's back?
Call us on 03 9794 7977.

Oversized item. Choose Ship at checkout and we'll provide a shipping price where available or follow up by phone or email with the lowest freight quote for your location. Store pickup is available at no charge.



  •  PATENTED BOS® GEARBOX Allows effortless operation using a drill and the option to use manual handle with ease
  • MACHINED RIBS For adjustable height
  • BOS® FIRST TO USE STAINLESS STEEL INNER PIPE 42MM
  • BOS® WORLD FIRST ARTICULATED BASE PLATE Unique ball joint design is great for uneven ground up to 30º
  • 12MM INPUT (NOT 1/2") Unique size gives added security
  • GREASE NIPPLE Provides grease to bearing, thread & gearbox
  • PREMIUM TEXTURED BLACK POWDER COATED CNC Machined outer pipe from heavy walled pipe
  • GUIDE BUSH For rigidity of the inner pipe
  • LOCKING SYSTEM Helps keep the inner pipe locked while traveling
  • Fits into your existing 50mm clamp
  • Patented BOS® Gearbox features a unique 12mm drive set for added security and provides effortless operation with a cordless drill or manual handle as a backup
  • LMATS Tested up to 1800kg in a rigid clamp setup

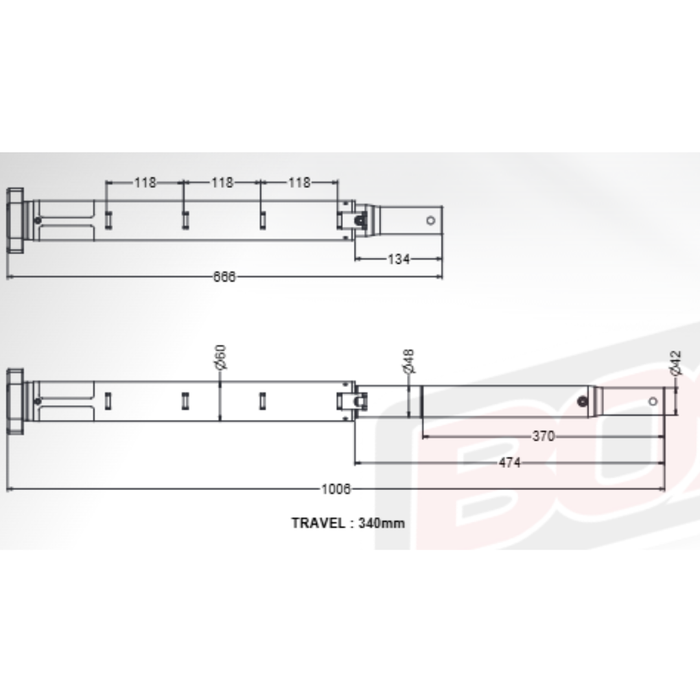

  • 400mm Extended travel
  • Unit can be left on while traveling, locking it in with medium clutch setting and the BOS® traveling strap
  • The articulated base plate kit will adjust to uneven ground up to 30º and is great if you have no need for a wheel
  • 120mm Pipe extension when extra height is needed
  • Maximum extension with base plate 990m
  • Mazimum extension with 120mm expension & base plate 1108mm

    Kit Includes:

  • Ariculated base plate (010-062)
  • Stainless steel extension (020-026)
  • Manual handle (020-003)
  • 12mm drill drive piece (020-007)
  • 2 x quick release pins (020-018)
  • Travel strap (370-strap)
  • Jockey weather cover (020-037)
  • Bonus stubby can cooler (010-035)

  • Bonus stubby bottle cooler (010-036)

* Purchase the 200-060 8" Double offset wheel separately
